37℃~40℃ Wastewater
Evaporation Concentration
Low temperature evaporation and concentration systems are used for the concentration of various solutions in food and vegetable juice concentration, MCM processing, coatings, electronics, chemicals, industry and wastewater treatment. Evaporators can achieve safe concentration of these raw materials. Ensure high product quality.
Depending on the specific application, we offer a variety of evaporation equipment technologies, including:
MVR evaporator
Low-temperature evaporator
Multiple-effect evaporator
Forced circulation evaporator
Low-Temperature Evaporator System Costing
How much does a low-temperature tvaporator system cost? In order to calculate the cost accurately, we recommend that you fill out a questionnaire and then we will be able to prepare a commercial offer, taking into account all the features of your project. We are always ready to provide you with detailed information about the different models, their technical characteristics, performance. We offer a full range of services, from advice and assistance in selecting equipment to its supply, installation and configuration. Our goal is to provide you with the necessary equipment to effectively solve the water treatment problem in your specific situation.
So, you need to email us at info@wteya.com
Our manager will prepare an excellent quote for you
What does it consist of?
From R&D, engineering design to project execution of equipment supply, commissioning, startup and performance testing, WTEYA is a reliable project development partner, supporting OEM and ODM customization, providing high-quality evaporation and concentration systems for all industrial markets.
How it works

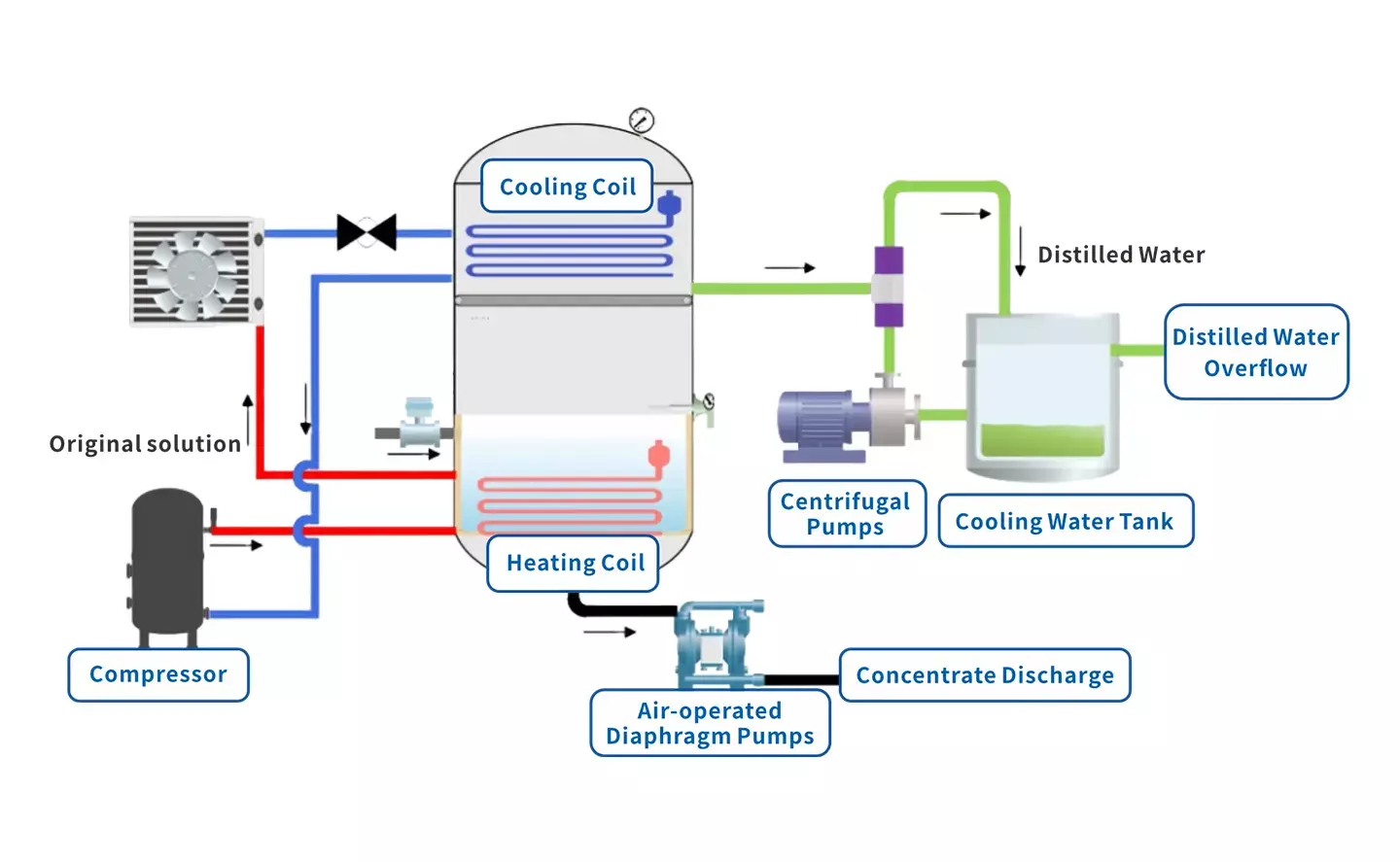

Low temperature evaporation concentration system adopts low temperature evaporation technology. Low temperature heat pump evaporation uses heat pump technology to achieve heat transfer and recycling through a heat pump system composed of compressors, evaporators, condensers and other components, thereby evaporating the solvent in the solution at a lower temperature (37-40℃).

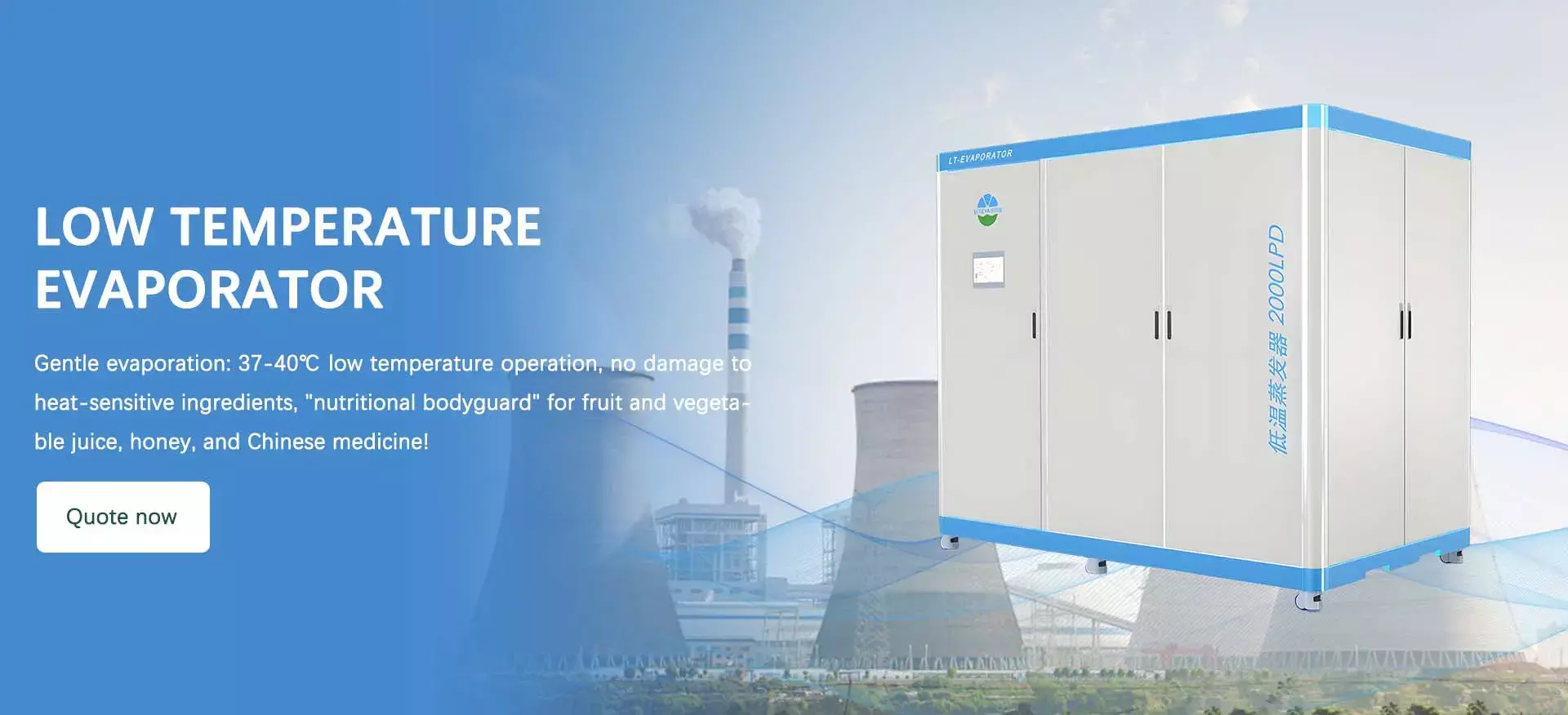

✅ Gentle evaporation: 37-40℃ low temperature operation, no damage to heat-sensitive ingredients, "nutritional bodyguard" for fruit and vegetable juice, honey, and Chinese medicine!
✅ Energy-saving expert: 1 part of electricity for 3-6 parts of heat energy, the electricity bill is touching~ (COP value 3-6, academic level energy efficiency ✨)

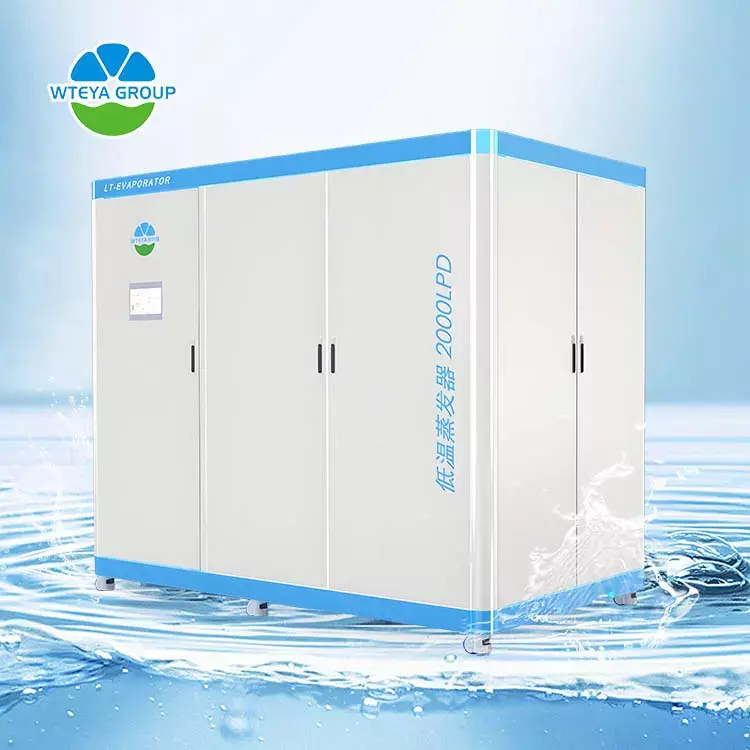

✅ 2000LPD big stomach king: easily evaporate 2000 liters a day, from small laboratories to large factories, all can be handled!
Product Parameters
|
MVR system parameters |
||||||
|
Model |
Processing capacity（t/d） |
Evaporation pressure (kPa) |
Evaporation temperature (℃) |
Dimensions（LWH/m） |
Operating power (kW) |
Installed power (kW) |
|
LPD-1000 |
1 |
6~7 |
30~37 |
2.5*1.5*2.3 |
10 |
18 |
|
LPD-2000 |
2 |
6~7 |
30~37 |
2.6*1.5*2.3 |
19 |
30 |
|
LPD-3000 |
3 |
6~7 |
30~37 |
3.6*2.2*2.3 |
25 |
36 |
|
LPD-4000 |
4 |
6~7 |
30~37 |
4.1*2.2*2.3 |
45 |
63 |
|
LPD-5000 |
5 |
6~7 |
30~37 |
4.7*2.2*2.3 |
51 |
78 |
|
LPD-10000 |
10 |
6~7 |
30~37 |
5.5*2.2*2.3 |
108 |
144 |
Where is it used?
WTEYA Group experts have extensive experience in the calculation, design and commissioning of cryogenic evaporation equipment for liquid product concentration and wastewater concentrate treatment. We have successfully implemented numerous zero liquid discharge and cryogenic evaporation concentration projects in different industries and have a large database of mature technical solutions.
