Why Can’t PCB Wastewater Treatment Rely Only on a Single Biological System?

08 May, 2026 11:31am

In PCB (Printed Circuit Board) wastewater treatment engineering, there is a common but high-risk misconception: many enterprises tend to adopt a single biological treatment system as the core process in the early project stage, mainly driven by the goal of reducing initial investment while quickly achieving discharge compliance.

However, based on extensive real-world engineering data, this “low-cost, simplified configuration” often fails to deliver stable long-term performance. After 3–12 months of operation, most projects begin to show systemic issues such as unstable effluent quality, repeated COD rebound, sludge bulking or disintegration, and even complete loss of system control. Ultimately, this leads to environmental penalties, production shutdowns, and significantly higher long-term operating costs.

Based on years of engineering design, commissioning, and operational experience in PCB wastewater treatment, WTEYA has identified a key principle:

The failure of a single biological system is not due to insufficient treatment capacity, but due to a mismatch between system function and wastewater complexity.

1. PCB Wastewater Is Not a Single-Pollutant System

A major misunderstanding in the industry is treating PCB wastewater as simply “high COD wastewater.” In reality, it is a multi-source, multi-pollutant mixed system generated from multiple production stages, including:

• Etching wastewater: high salinity and heavy metals (copper, nickel, chromium)

• Electroplating wastewater: contains complexed heavy metals with chelating agents (EDTA, citrate, etc.)

• Developing wastewater: high variability organic solvents and surfactants with poor biodegradability

• Rinsing wastewater: low concentration but high flow fluctuation, causing hydraulic shock loads

Once mixed, these streams create a multi-mechanism pollution system, characterized by:

• Chemical pollution (complexed heavy metals difficult to remove)

• Biological inhibition (toxic compounds suppress microbial activity)

• Physical contamination (suspended solids and colloids causing sludge instability)

• Hydraulic shock (sudden flow and concentration fluctuations)

A single biological system can only address biodegradable organic matter, which represents only a small fraction of the total pollution load.

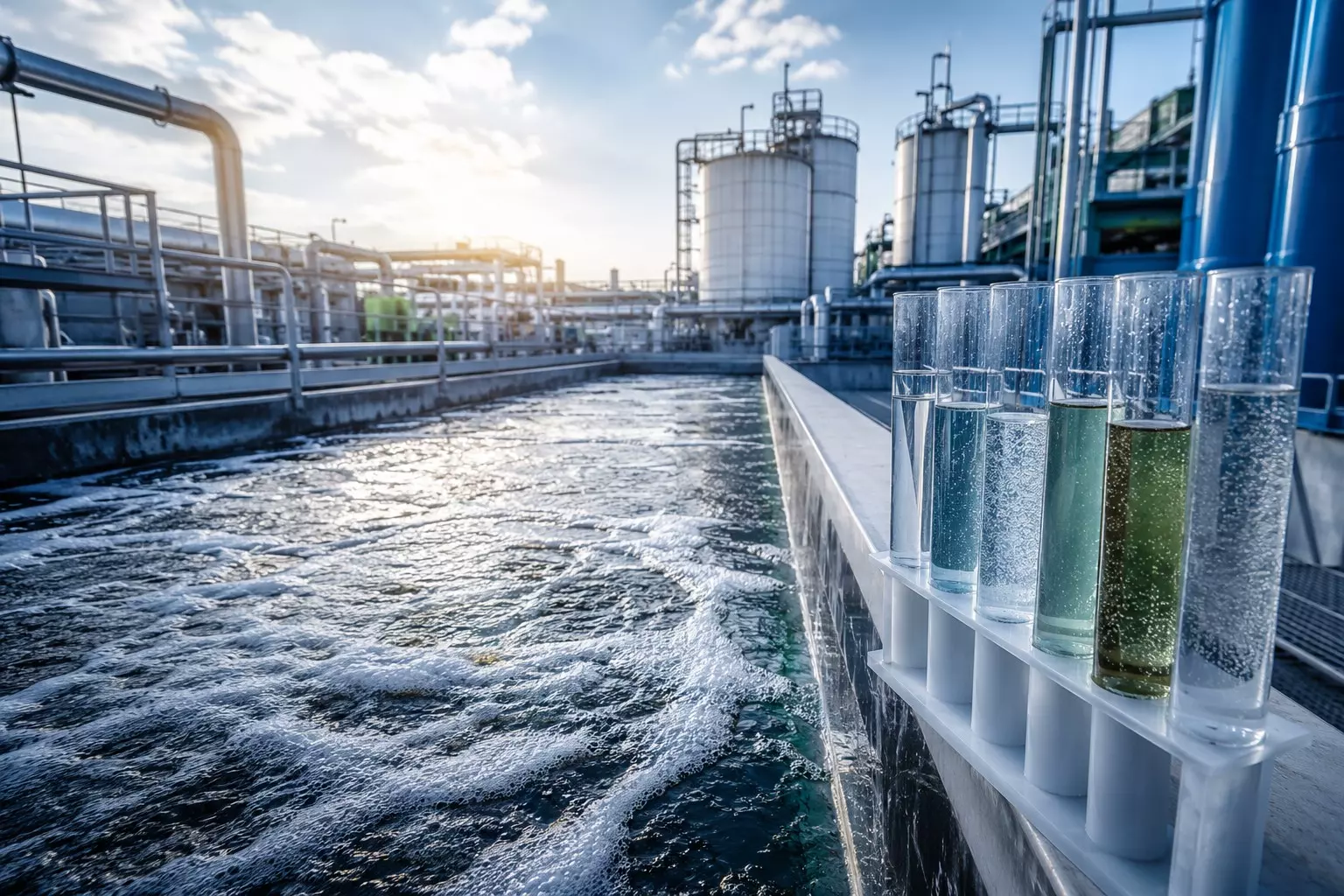

industrial wastewater treatment

2. Structural Limitations of Single Biological Systems

2.1 Toxic Inhibition of Microorganisms

Heavy metals such as copper and nickel often exist in complexed forms, which cannot be fully removed by conventional precipitation methods. These compounds continuously enter the biological system and inhibit microbial activity.

As a result:

• Early-stage operation appears stable

• Over time, heavy metal accumulation suppresses biomass activity

• System gradually loses degradation capacity

Eventually leads to effluent exceedance and sludge failure

2.2 Mismatch Between COD Structure and Biological Capability

PCB wastewater COD is structurally complex and includes:

• Biodegradable organics (only ~30–40%)

• Refractory resin compounds

• Surfactants and process chemicals

• Metal-organic complexes

A biological system can only degrade the biodegradable fraction, while the rest accumulates and causes long-term instability.

This leads to a misleading situation:

COD readings may decrease, but effluent stability is not guaranteed.

2.3 Hydraulic and Load Shock Sensitivity

PCB production is not continuous but batch-based and fluctuating, resulting in:

• Sudden high-COD discharge

• Low-load dilution phases

• Rapid changes in pH and toxicity

Single biological systems lack buffering capacity, making microbial communities highly vulnerable to shock loads, leading to:

• System imbalance

• Sludge bulking

• Treatment collapse

3. WTEYA Engineering Practice: Multi-Stage System Logic

Instead of strengthening biological treatment alone, WTEYA adopts a multi-stage collaborative treatment architecture, ensuring each unit handles a specific function.

Stage 1: Pollution Reduction Layer (System Survival Foundation)

Purpose: eliminate toxicity and stabilize influent load.

Key processes:

• Decomplexation treatment

• Chemical precipitation of heavy metals

• pH neutralization

• Coagulation and flocculation

This stage determines whether the biological system can operate stably.

Stage 2: Biological Treatment Layer (Stable Degradation Core)

After toxicity removal, biological treatment focuses only on biodegradable organics.

Typical configuration:

• AO process (anaerobic–oxic)

• MBR membrane bioreactor

Core goal is stability, not extreme efficiency, ensuring continuous degradation of organic pollutants.

Stage 3: Advanced Treatment Layer (Final Compliance Assurance)

Removes residual pollutants such as trace COD, metals, and suspended solids.

Technologies include:

• Advanced oxidation (Fenton, ozone)

•Activated carbon adsorption

• UF/RO membrane systems

This ensures final effluent meets discharge standards and enables possible water reuse.

4. Core Conclusion

PCB wastewater treatment must meet three fundamental requirements:

• Pollutants must be treated in layers

• Toxicity must be removed before biological treatment

• System must absorb hydraulic fluctuations

A single biological system cannot meet these conditions.

Therefore, multi-stage collaborative systems are not an upgrade option—they are the minimum engineering requirement for stable PCB wastewater treatment.
