MVR Evaporator
MVR Evaporator

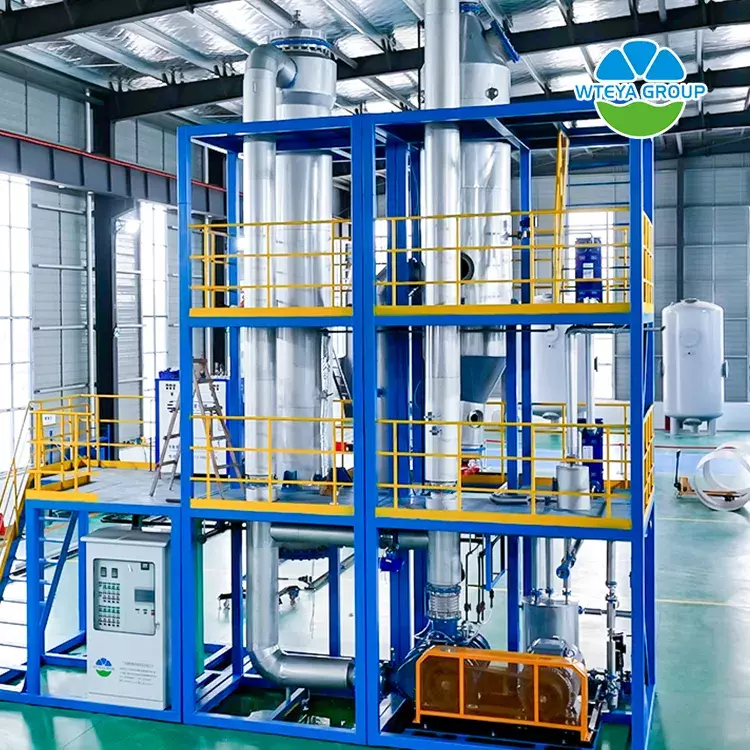

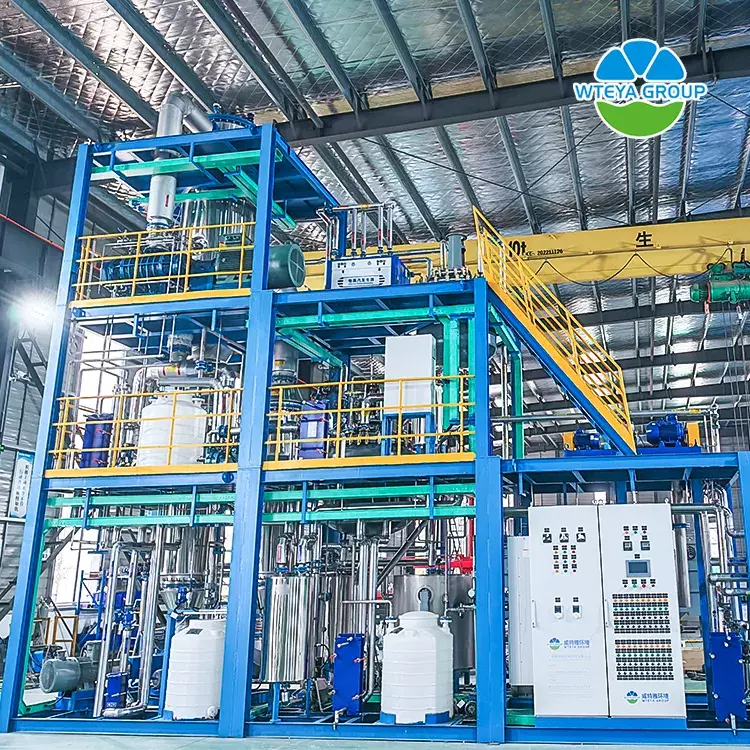

High cod MVR sewage evaporator

Brand: WTEYA GROUP
MOQ: 10 Pieces
Delivery time: 15 Day
MVR high COD sewage evaporator is a high efficiency evaporator designed for high COD industrial sewage, using mechanical vapor recompression (MVR) technology to achieve the concentration and cleanse of waste water.
Product Details

Product introduction

High cod sewage features:

High chemical oxygen demand (chemical oxygen demand-cod) is an industrial sewage containing high concentration of biodeless organic substances. This type of sewage, if not directly treated, can cause critical pollution to the water areas, which affect the aquatic ecosystem and human health. Its features include:

1. High cod content: filled with high concentration of organic pollution, resulted in water soluble oxygen quickly, meaning the survival of aquatic creatures.

2. Strong detox: can contain harmful chemicals, have harmful effect on bacteria, which affect the biochemical treatment effect of sewage.

3. Poor biochemical ability: traditional biological treatment methods are difficult to degrade organic substances completely and require the use of physical or chemical methods to assist with treatment.

4. High color, strange smell: contains colorants and compounds, affect the water's feeling quality.



High cod sewage MVR evaporator component:

This device is mainly made up of preheating element, evaporator body, liquid gas separator, steam compressor, and core parts such as condenser. The components work together to complete efficient evaporator for high COD sewage.



Technical principle of high COD waste water MVR Evaporator:

In the working process of the MVR evaporator high COD sewage, the first time sewage is heated to the boiling point by pre-stage heater. It is then taken to the body of the evaporator and boiled in it to create steam, while organic substances in the sewage are concentrate. The results steam gets into liquid aerator, separation of pure vapor and concentrated liquid. Pure steam to the return of the evaporator as the heat source after strengthening by the vapor compressor, while the concentrate is further processed or recalled by the exhaust system.



MVR high COD sewage evaporator advantages:

1. high efficiency and energy saving: vapor compression technology greatly reduces external energy needs and saves energy consumption.

2. Environmental Performance: no additional chemicals are required during processing, reduce the ability to secondary pollution.

3. high automation level: equipped with PLC control system to achieve high automation operation and reduce labor cost.

4. strong application ability: can deal with high COD sewage with different components and concentration, with good adaptation.

5. considerable economic benefits: while saving energy, it can also collect soluble substances from waste water and increasing economic benefits.



High cod waste water MVR evaporator application areas:

This device is widely used in pharmaceutical, food processing, papermaking, printing and dyeing, chemical industry and other industries, particularly suitable for the treatment of high-concentration organic sewage with traditional biochemical methods.



Technical principle of

In the working process of the MVR evaporator high COD sewage, the first time sewage is heated to the boiling point by pre-stage heater. It is then taken to the body of the evaporator and boiled in it to create steam, while organic substances in the sewage are concentrate. The results steam gets into liquid aerator, separation of pure vapor and concentrated liquid. Pure steam to the return of the evaporator as the heat source after strengthening by the vapor compressor, while the concentrate is further processed or recalled by the exhaust system.



The production process of

xx

Production of equipment



xx



Wteya aims to digital and intelligent production to provide superior products and services to its customers. We not only provide a wide range of standard products which are seriously tested and stable performance to meet a wide range of industrial needs. We also provide custom service, as well as OEM and ODM services, professional design team provides proper solutions for customers to meet their unique needs. We will work closely with each customer to ensure that every device suits customer's process requirements and production process accurately. Wteya's one-stop service, innovative to create high-quality mechanical products and system solutions, professionally help customer deal with various water treatment problems.



Capacity and size

MVR system parameter board

Evaporator (T/h)

Evaporative way to make

Total energy (kW/h)

Steam consumption (T/h)

Reuse water consumption (T/h)

Area of the (length, height/m)

0.5

MVR, loop required

70

0-0.03

10

6*3*5

1

MVR, loop required

110

0-0.05

10

9*8*6

1.5

MVR, loop required

180

0-0.05

20

12*7.5*9

2

MVR, loop required

213.5

0-0.1

30

12*8*10

3

MVR, loop required

275

0-0.1

50

15*8*15

5

MVR, loop required

425

0-0.2

50

15*10*15

7.5

MVR, loop required

580

0-0.3

70

15*12*15

10

MVR, loop required

815

0-0.3

100

12*6*18



Temperature panel parameters

Evaporator (T/h)

Heat exchanger type

Specification (specification)

The material is material

Qty of the quantity

Used to have

0.5

Two horizontal pipe,

Circulation required round

S = 50m ², galls 500 × 6000 × 5mm

TA2

1



1

Two horizontal pipe,

Circulation required round

S = 100m ², Nils 650 × 6000 × 5mm

TA2

1



1.5

Two horizontal pipe,

Circulation required round

S = 150m ², galls 800 × 6000 × 5mm

TA2

1



2

Two horizontal pipe,

Circulation required round

S = 200m ², Nils 800 × 5mm

TA2

1



3

Two horizontal pipe,

Circulation required round

S = 260m ², galls 1000 × 6000 × 5mm

TA2

1



5

Two horizontal pipe,

Circulation required round

S = 450m ², Nils 1300 × 6000 × 6mm

TA2

1



7.5

Two horizontal pipe,

Circulation required round

S = 650m ², Nils 1500 × 6000 × 6mm

TA2

1



10

Two horizontal pipe,

Circulation required round

S = 880m ², Nils 1800 × 6000 × 8mm

TA2

1





Chart of effect chart

xxxx



Frequently Asked Questions



Q: MVR forced evaporator to run?
Cause: could be the corrosion of secondary steam pipes or air compressors, pure water quality does not meet the standards, or at the point of equipment such as welding, flange, sealing, expansion, and so on.
Solution: ensure water quality into standards, regularly cleaning the system, maintain stable cooling water temperature, and provide a complete amount of cooling water.



Q: The steam reduction charged by MVR?
Cause: could be due to system clogging or dirt in the hot water catheter.
Solution: do online purification programs for cleaning dirt.



Q: The effect of steam valve charged by MVR?
Cause: The material is processed after thickening, crystally, resulting in clogging.
Solution: The Prevention includes regular filter of salt and spray as well, once stuck, use juice or vacuum treatment.



Q: MVR compulsory evaporator effect?
Expression: Produces regular and loud sound, vibrates the pipes.
Solution: constant current stability compressor when counter rate is soft and open the valve through the appropriate rate; counter rate need to close the compressor immediately for testing, pay attention to liquid temperature to avoid counter rate.



Q: cool MVR evaporator don't work properly?
Cause: could be due to too thick dust, or vacuum drop.
Solution: add agent foaming agent, check detector and dehumidifying liquid, import steam valve adjustment, vacuum control.



S/N Single effect evaporator Multi effect evaporator TVR evaporator MVR evaporator
Energy source Using steam heating
Steam pipe network
Need boiler
Using steam heating
Steam pipe network
Need boiler
Need high pressure steam to drive,
Need boiler
Using electric power,
no need steam pipe network
close loop circulation system
Energy consumption 1 tons steam for 1ton water evaporation 0.3~1tons steam for 1ton water evaporation Based on traditional multi effect, one more effect is used with high pressure steam drive The most energy saving technology at present
Operation cost Much higher More energy saving Lower Lowest
Footprint smaller bigger bigger smaller
Product quality Short residence time,
Bigger temp. difference lead to easy scale.
product quality not stable
Longer residence time,
Bigger temp. difference lead to easy scale.
product quality not stable
Short residence time,
Smaller influence on product quality
Short residence time,
Low temp. evaporation,
Minimum impact on product quality
Control type Semi-automatic Full automatic
Uninterrupted evaporation
Full automatic
Uninterrupted evaporation
Full automatic
Uninterrupted evaporation
