How Much Water Does a Zero Liquid Discharge System Recover?

28 Aug, 2026 9:56am

zero liquid discharge system

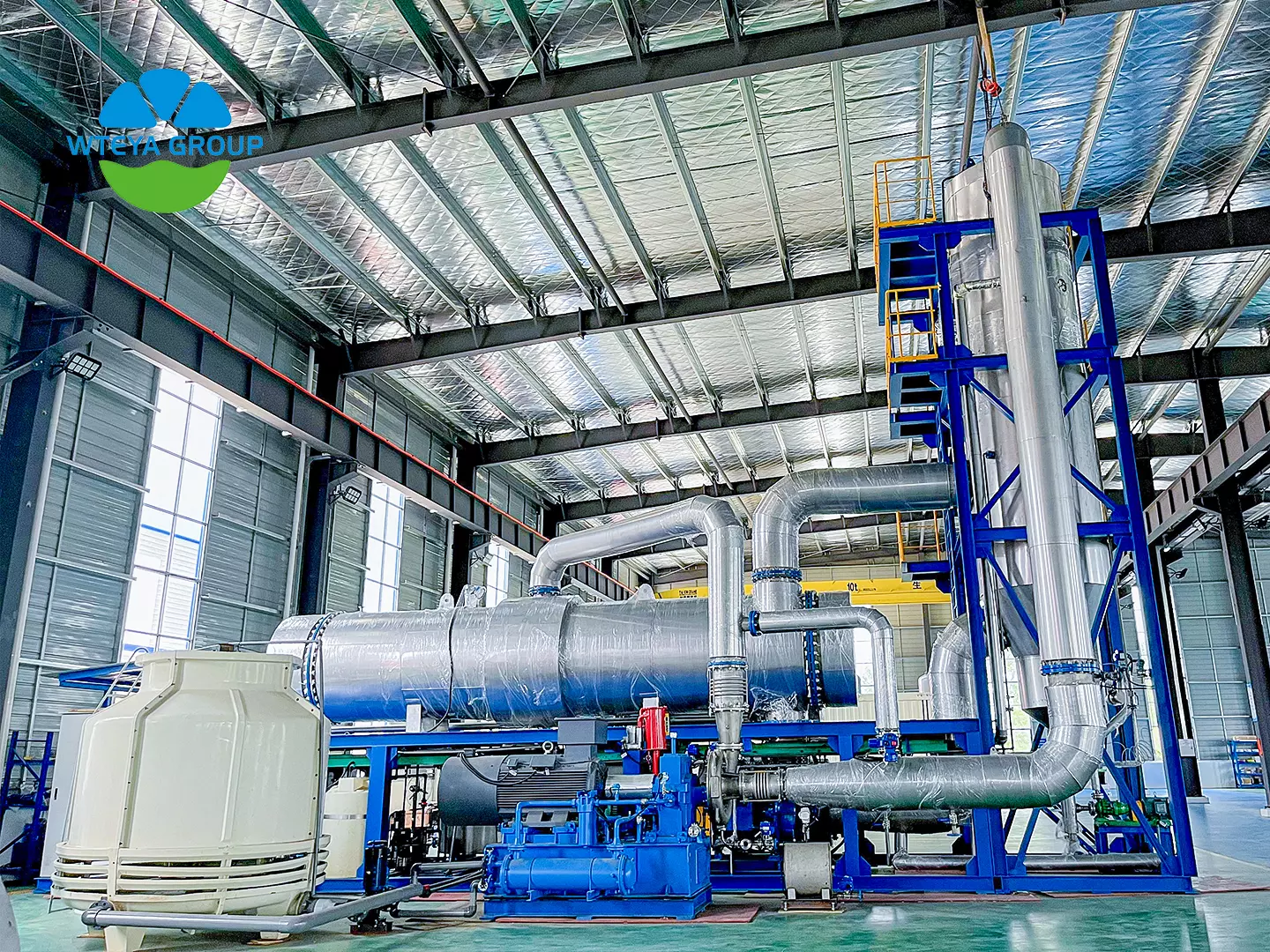

A mature zero liquid discharge (ZLD) system can recover 95% or more of its water. The membrane concentration stage first cuts the brine volume by over 90%, and the remaining high-salinity brine is then almost fully converted into product water and solid salt by MVR evaporation and crystallization — so no wastewater leaves the plant.

⚙️ How Each Stage Recovers Water

A ZLD system recovers water in stages. Pretreatment removes hardness and impurities to keep the downstream units stable. The membrane concentration stage desalts and recycles water at a 70%-90% recovery rate. The MVR evaporator then cuts the remaining brine volume by more than 90%, and the crystallization stage produces solid salt plus condensate that is returned to the process.

Because every stage feeds the next one, the total recovery rate is a product of the whole train — which is why mature systems routinely reach over 95% overall.

📊 What Affects the Recovery Rate

Three factors decide how much water a ZLD system can recover. First, feed salinity and hardness — the higher the salt content, the lower the concentration factor allowed by solubility limits. Second, scaling control — good antiscalant dosing and hardness removal let the membranes and evaporator concentrate to higher factors. Third, process configuration — only systems that include evaporation and crystallization can reach the highest recovery ceiling.

💡 How to Push the Recovery Rate Higher

To raise recovery, strengthen pretreatment for hardness and silica removal, optimize the antiscalant program, and use high-efficiency concentration units such as high-pressure reverse osmosis or DTRO. Recycling the evaporator mother liquor multiple times and collecting condensate and membrane permeate separately by end use also maximizes water reuse.

✅ What "Zero Discharge" Really Means

Do not judge "zero discharge" by the recovery number alone — the key question is whether the system has any discharge outlet at all. A complete ZLD project recycles water that meets production requirements and recovers the salt as a resource, with no external wastewater discharge.

🏆 Why Choose WTEYA

WTEYA is a professional evaporation equipment manufacturer with nearly 20 years of experience serving more than 2000 customers. We design ZLD solutions around your actual water quality, capacity, and site conditions, and we support full OEM & ODM services. Every project starts with a water balance and salt balance calculation, so the recovery target is guaranteed by design rather than by guesswork.
